0.45 Micron Reinforced PTFE membrane filters for Biomedical Devices

Polytetrafluoroethylene (PTFE) filter membranes are a common material used for implants and medical devices in general because of its high biocompatibility and inertness. PTFE Membrane possesses natural hydrophobic properties, making it an excellent choice for applications such as filtering gases, aqueous aerosols, protecting vacuum pumps, or sterile venting fermentation tanks. The membrane's ability to prevent aqueous aerosols from entering the system ensures that the air being vented is free from contaminants, providing a safer and more hygienic solution for various industries such as pharmaceutical manufacturing. PTFE membranes can be utilized to protect pumps and machinery from aqueous aerosols by effectively blocking these particles from entering the system, these filters help maintain the integrity and performance of pumps and other equipment. One unparalleled advantage of PTFE membrane filter is their ability to withstand much higher water intrusion pressures than other types of filter membranes, this is an essential factor to consider for in-line filtration applications.

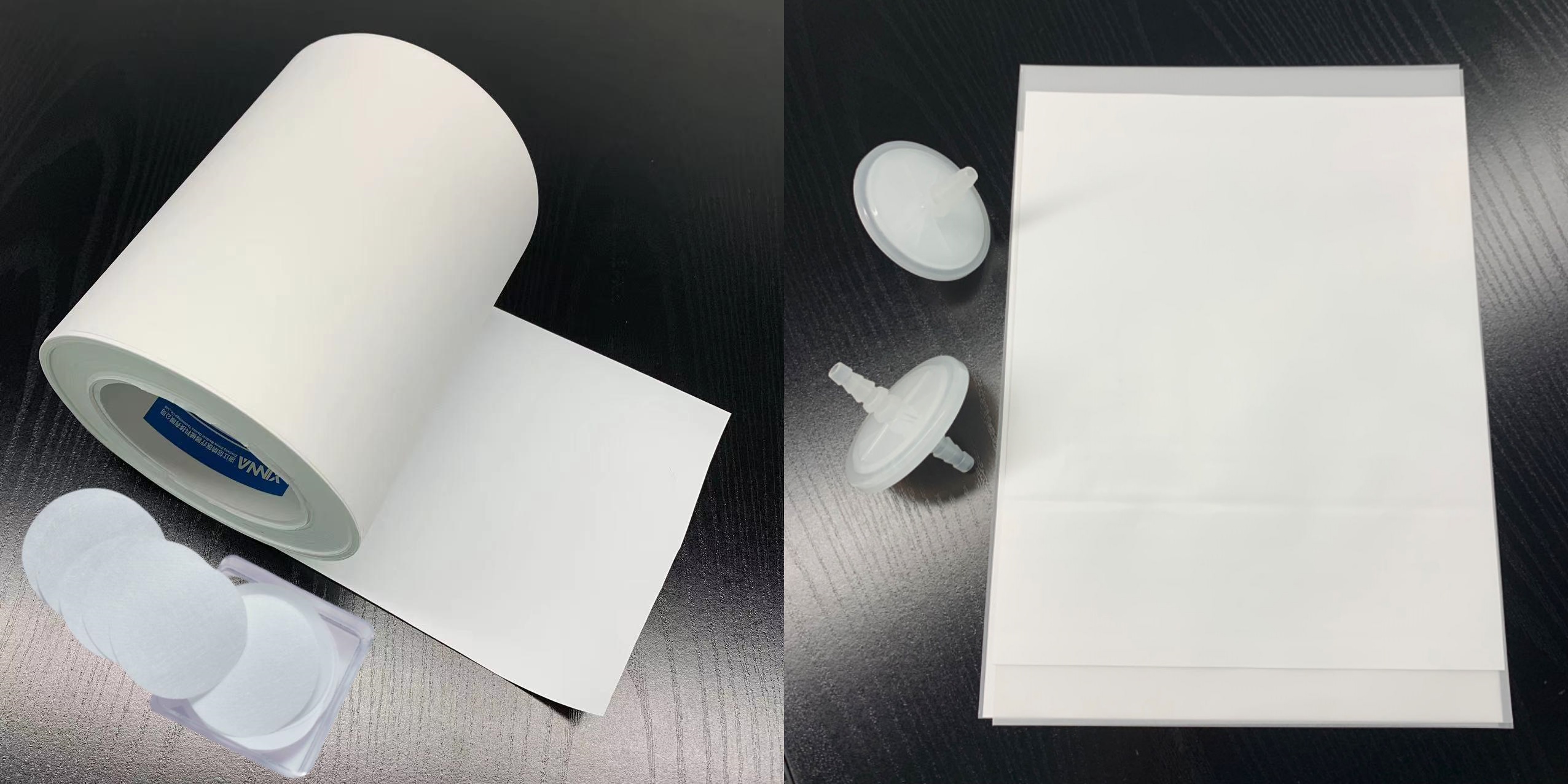

PTFE membranes from us are bi-axially stretched (expanded) with uniform pore size, high porosity which effectively retain microbes and particles in the air. And given the sensitive nature of PTFE, the membrane filters are reinforced and laminated with a polypropylene backing for higher mechanical strength and easy handling, which significantly extends their medical and biotech applications. The PTFE membrane filters from us are generally available in the form of rolls, which can be punched to the desired size and formats as per requirements to ensure optimal performance across a wide range of applications.

Features of Reinforced PTFE membranes

• Medical/ Biotech Grade
• Naturally Hydrophobic
• Polypropylene supported for increased strength
• High mechanical strength
• Excellent Air Permeability
• High Air Flow Rates
• High Resistance to Water Entry Pressure (WEP)
• Temperature resistant up to 130°C
• Resistant to most aggressive acids, alkalis, and solvents
• Sealing Compatibility: Ultrasonic, Adhesive, Heat, RF Welding, Mechanical
• Sterilization: Autoclave; Ethylene Oxide

Specificatons Available

Applications

With their unique properties, ePTFE membranes and filters have become indispensable consumables in in medical, healthcare and bio-tech industries worldwide. PTFE membranes can function as a barrier to confine fluids while allowing smooth passage of air and gas, are extensively employed in various biomedical devices for air venting and gas filtration, aerosol sample handling and special corrosive solvents filtration, their common uses including

• IV Filter Vents
• Transducer protectors (Hemodialysis TP)
• Suction Filters,
• Insufflation Filters,
• Bacterial Air Vents.
• Dispensing Pin Filters
• Syringe filters for HPLC sample preparation

·

Founded in 1994, Zhejiang XINNA Medical Device Technology Co.,ltd is a trusted and professional manufacturer of high-quality membrane filtration products. As a high-tech enterprise integrating R&D, production and sales,  Xinna provides a wide range of membrane filter products and solutions in the process of filtration, sterilization and purification. ln terms of core technology, it owns 7 patented technologies of joint research and development of filter membranes with one of the best Universities in China. The Nylon, PES, PP, PVDF, PTFE and other membrane filters from us are widely used in medical devices,laboratory, healthcare, air filtration and more fields.

Facilities

Our 161,458 square feet facilities are located in Zhejiang Province of China, with 75,347 square feet as Class 100,000 Cleanroom. This allows us to provide a superior level of cleanliness and contaminate-free status of products to our customers including medical device manufacturers, laboratories and healthcare professionals all around the world.

Featured Products

1. Inline IV Filters & extension lines with IV filters & Transducer protectors

• PTFE membrane for air evacuation
• Single or double-layer PES membrane as filter media
• Pore size: 0.22μm, 0.45μm,1.2μm, 2μm, 3μm, 5μm

Certificates

We hold the ISO 9001:2009 and ISO 13485:2003 Certificates, committed to maintaining a high standard of quality and safety in our operation to ensure our products and services meet our customers’ needs.
